Residential Solar Installation – Kano (Project 7)

6 kW Deye Hybrid • 15 kWh Sungene Lithium • 5.58 kWp Jinko PV Array

Residential hybrid solar installation completed in Kano in February 2026 by Illamab Energy Solutions.

Project Overview

This residential hybrid solar system was designed to provide reliable solar and battery-supported power with reduced dependence on conventional backup sources. The installation combines a 6 kW Deye hybrid inverter, 15 kWh Sungene lithium battery storage and nine 620 W Jinko solar modules, giving a total PV capacity of 5.58 kWp.

  • Location: Kano, Nigeria
  • Application: Residential
  • Inverter: 6 kW Deye Hybrid
  • Battery: 15 kWh Sungene Lithium
  • PV Array: 9 × 620 W Jinko modules (5.58 kWp)
  • Scope: PV installation, battery storage, AC/DC protection, dedicated earthing, monitoring, testing and commissioning
  • Completed: February 2026

Project Gallery

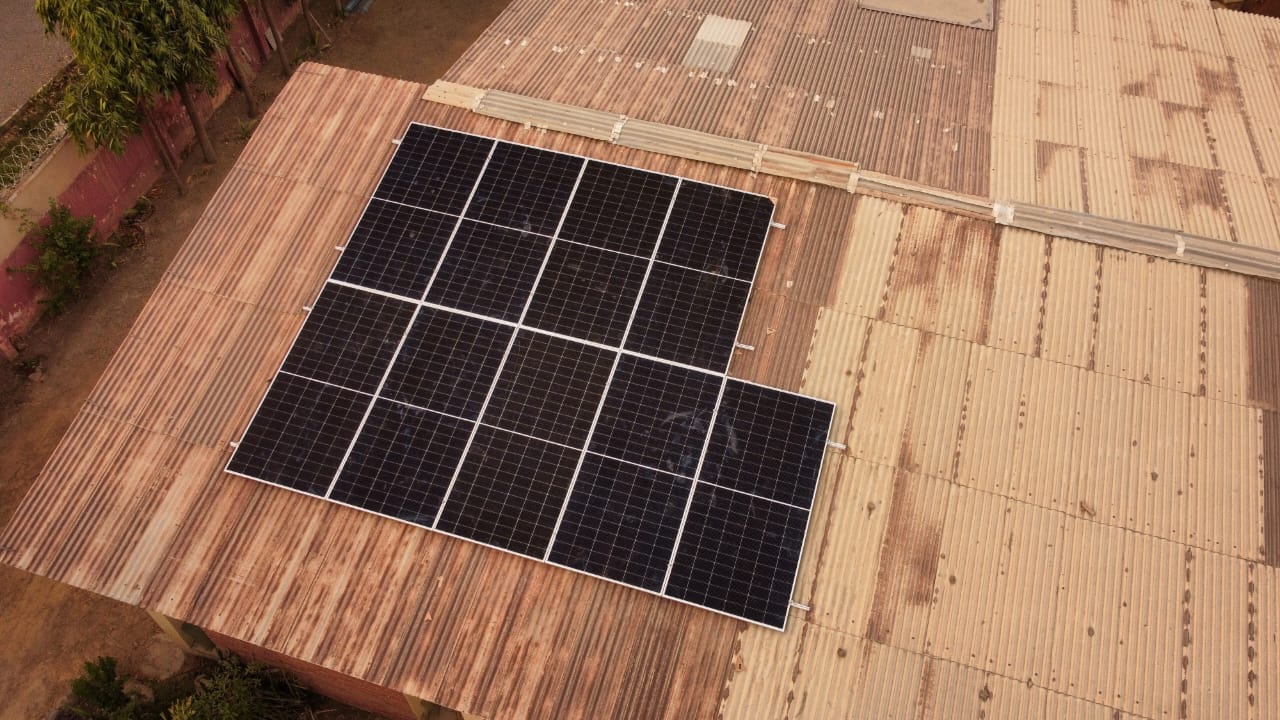

Aerial view of a 5.58 kWp residential rooftop solar array in Kano installed by Illamab Energy Solutions

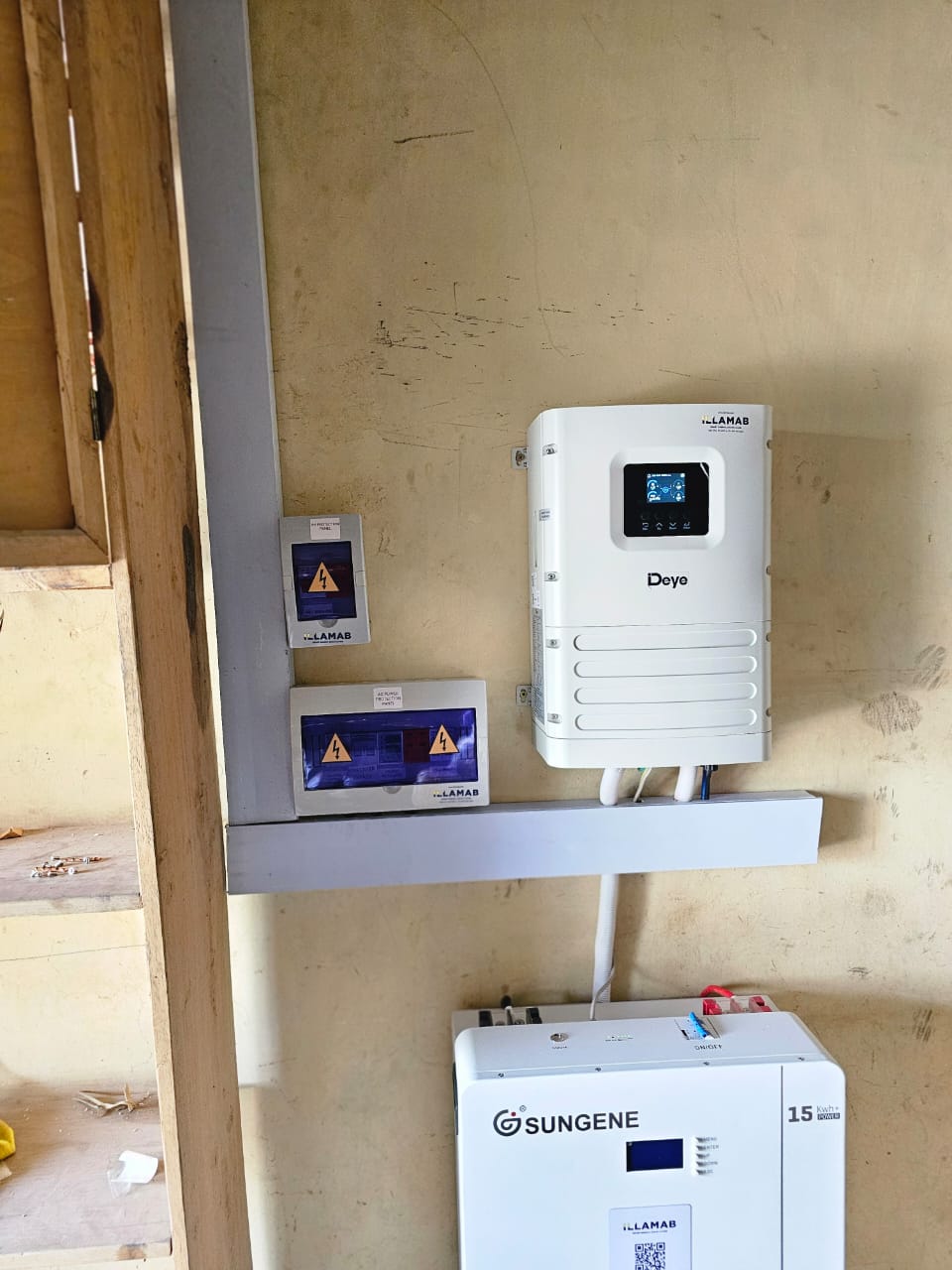

6 kW Deye hybrid inverter with 15 kWh Sungene lithium battery installed in a Kano residence by Illamab Energy Solutions

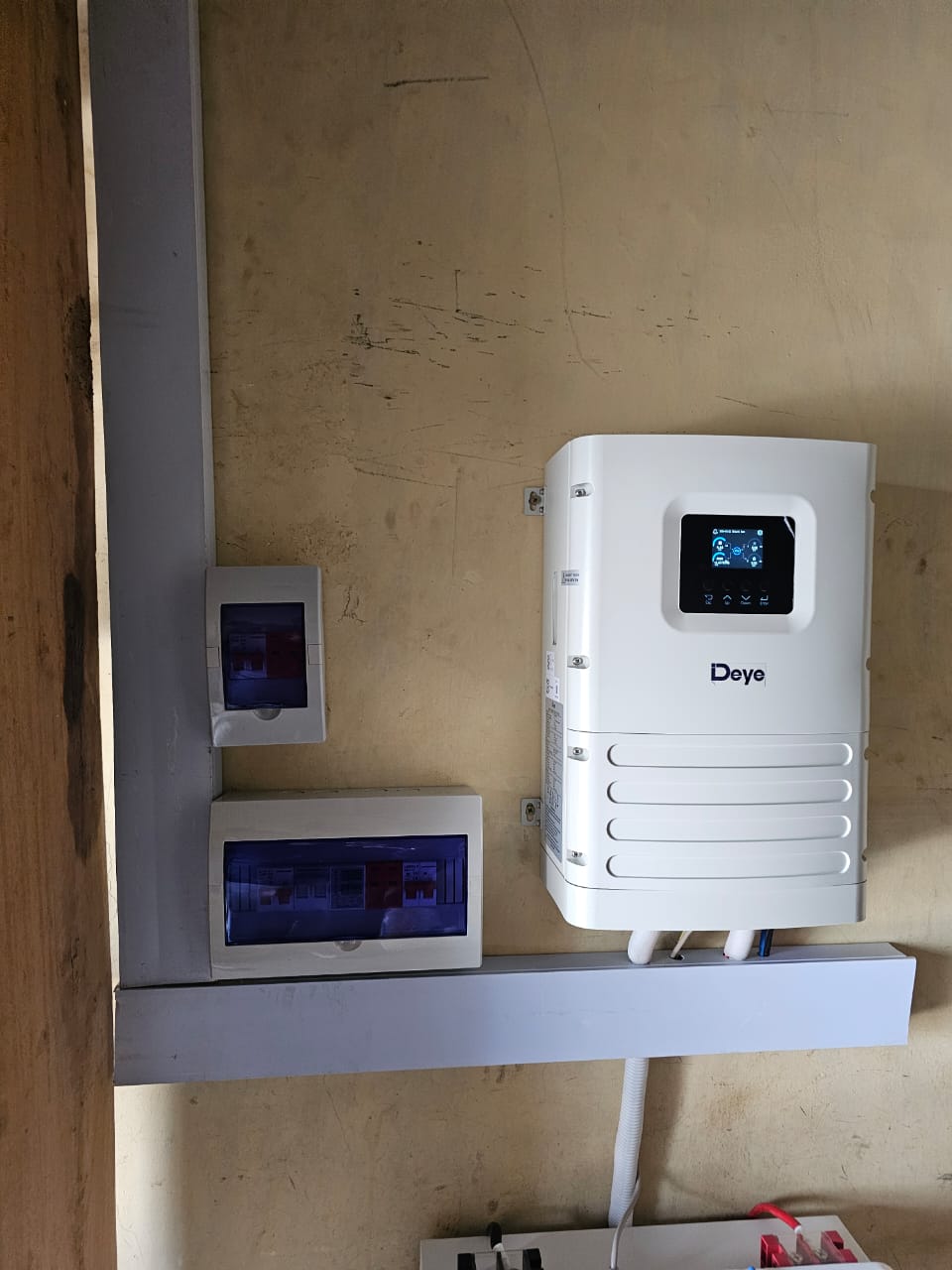

6 kW Deye hybrid inverter and protection boards for a residential solar installation in Kano

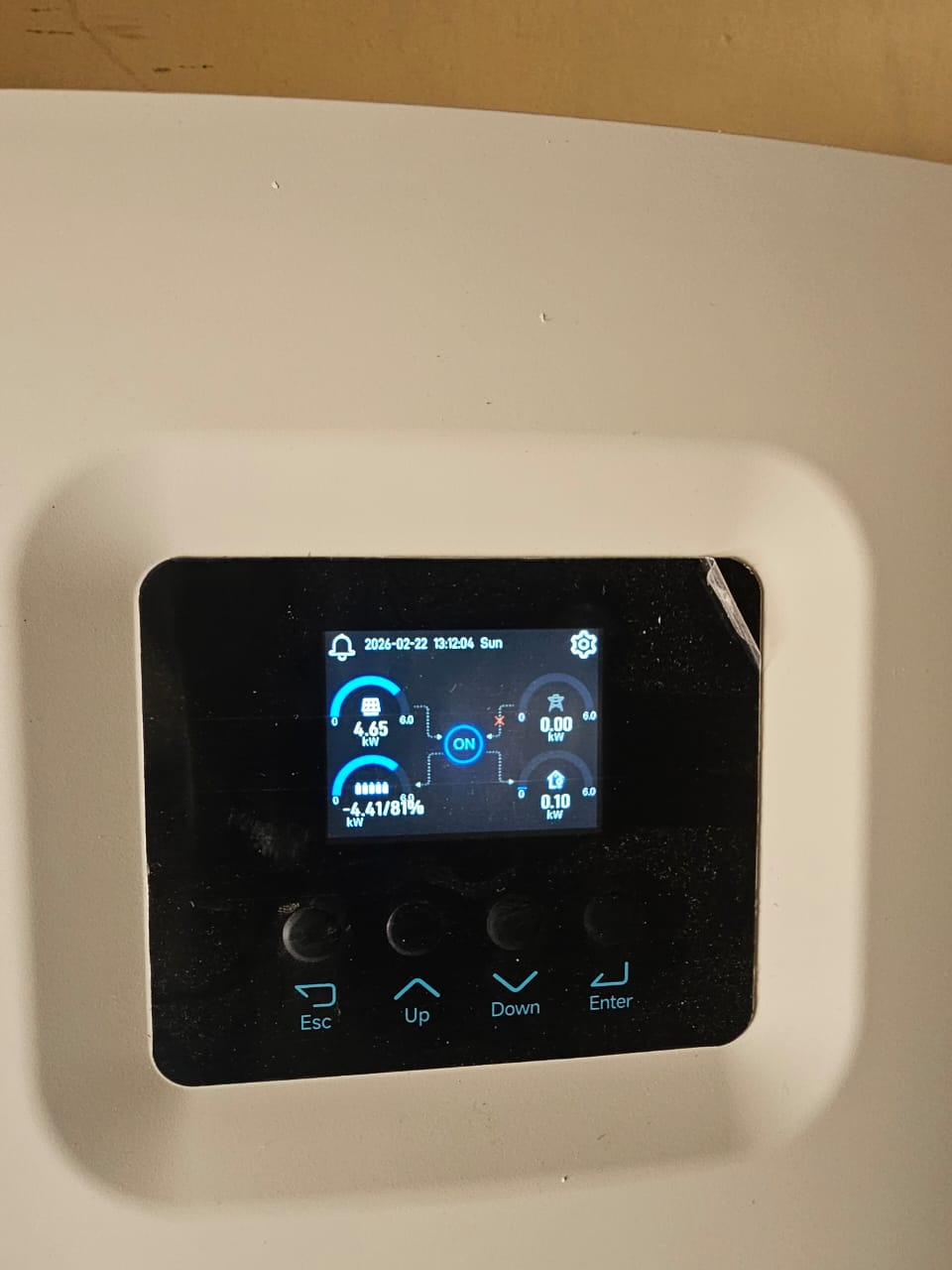

Deye inverter commissioning screen for a 6 kW residential hybrid solar system in Kano

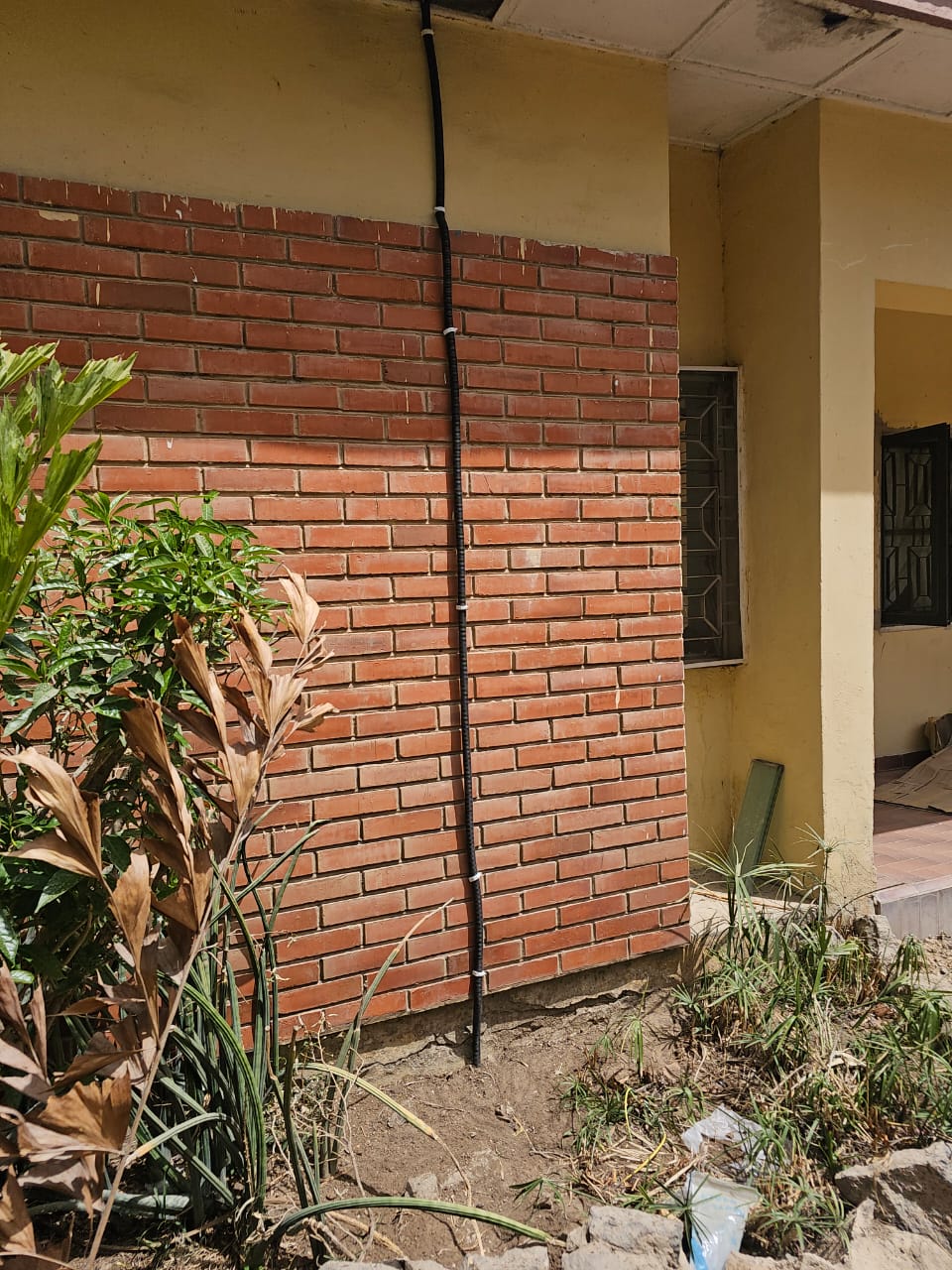

Dedicated earthing installation for a residential hybrid solar system in Kano by Illamab Energy Solutions
